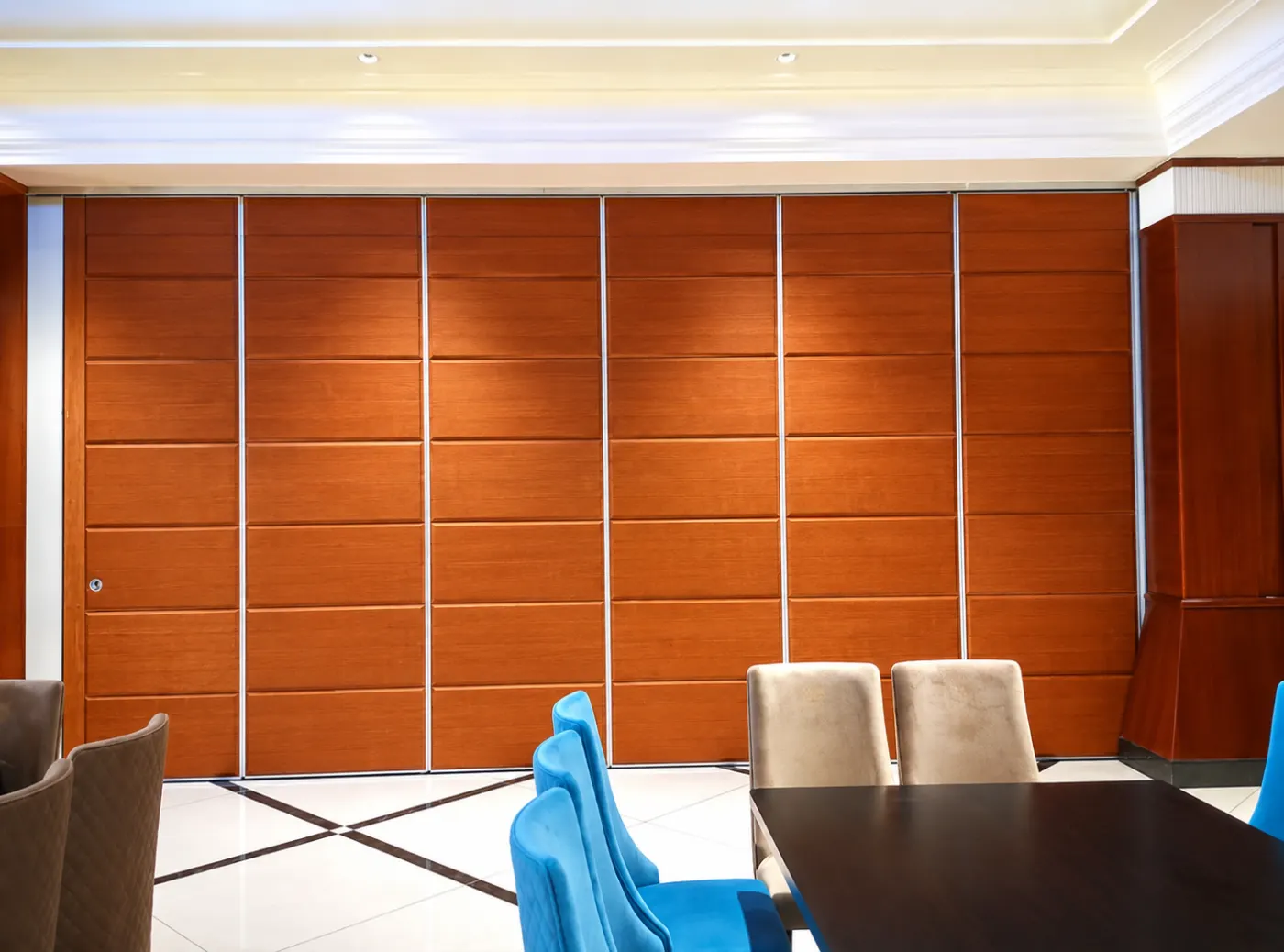

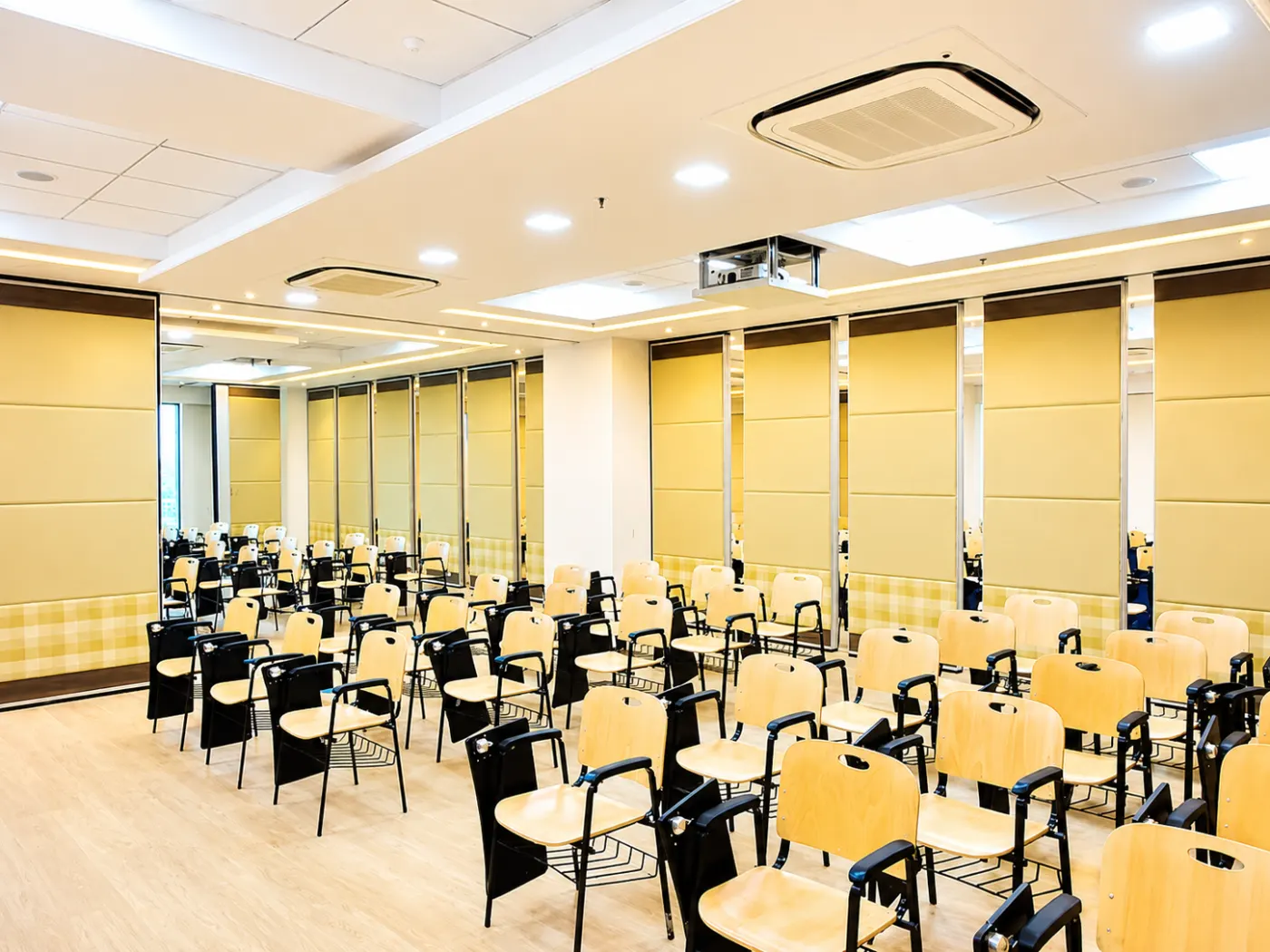

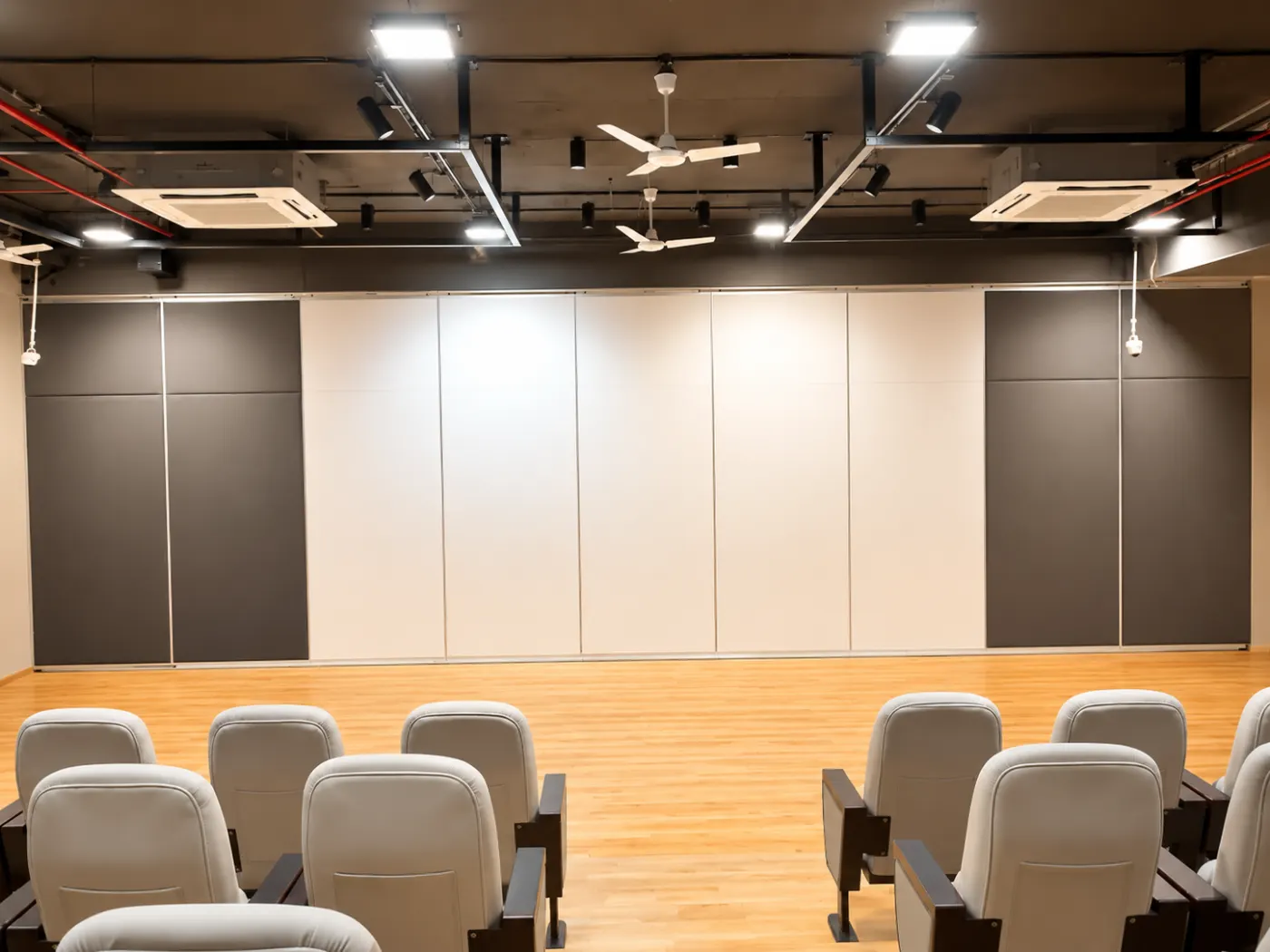

The Type 100 movable wall partition is engineered with a premium anodized aluminium frame and environmentally friendly composite materials. The panel operates on a ceiling-mounted track system, eliminating the need for floor guides or floor rails.
Each panel has a standard thickness of 100mm and supports widths up to 1219mm, with maximum heights reaching up to 7500mm. The system uses concave and convex interlocking profiles combined with fast-set retractable top and bottom seals to deliver smooth operation and strong acoustic performance.
The Type 100 series is ideal for restaurants, schools, offices, religious facilities, hospitals, shopping arcades and many other indoor applications where flexible space division is required.
The EG100 operable wall series with 100mm thickness delivers effective space division with strong acoustic and fire-resistant performance. Available in EG100-43, EG100-48, and EG100-53 variants, the system achieves STC ratings of 43dB, 48dB, and 53dB, with corresponding weights of 38kg/m², 46kg/m², and 55kg/m². Each model provides 60 minutes of fire resistance and supports panel widths ranging from 680mm to 1219mm and heights from 2000mm to 7500mm. Standard specifications include 30/40kg top and bottom seal pressure, 140mm LCP stretch, and carrier capacities of 60#, 80#, and 100#, ensuring reliable sealing, smooth operation, and effective acoustic separation for commercial and interior partition applications._1.jpg)

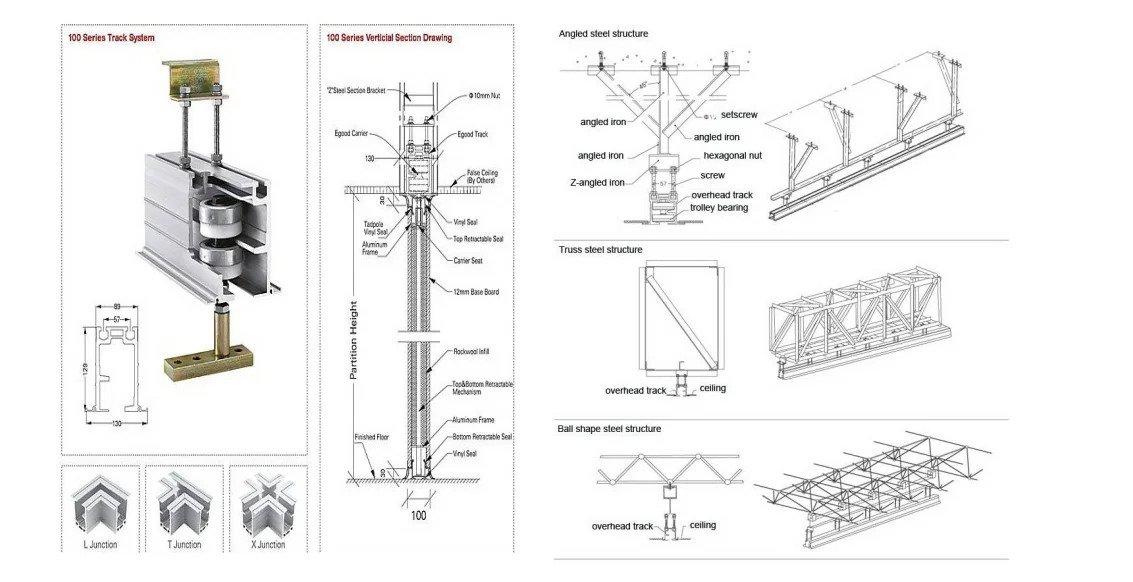

Our Type 100 Operable Wall Track System is a premium top-hung partition solution engineered for smooth, reliable, and flexible space division. The system features a heavy-duty aluminum overhead track, precision trolley bearings, and robust carrier mechanisms designed to support high-performance operable wall panels.
With no floor track required, it provides seamless movement, enhanced aesthetics, and maximum floor accessibility. The detailed vertical section illustrates the integration of acoustic seals, retractable mechanisms, rockwool insulation, and aluminum framing for superior sound control and operational efficiency.
⚪ Heavy-duty top-hung aluminum track system
⚪ No floor track for unobstructed floor space
⚪ Smooth and quiet panel movement
⚪ Superior acoustic insulation and sealing
⚪ Suitable for conference rooms, banquet halls, hotels, offices, and educational facilities
⚪ Available with L, T, and X track junction configurations for flexible layouts
To ensure maximum stability and load-bearing performance, our operable wall systems can be integrated with various structural support configurations based on product requirements.
Designed for installations where additional overhead support is required, the angled steel framework distributes panel loads efficiently to the building structure. This solution provides excellent strength while maintaining a compact profile.
The truss support system is ideal for large-span operable wall installations. Its reinforced framework delivers exceptional load distribution, making it suitable for convention centers, ballrooms, auditoriums, and multipurpose halls.
A lightweight yet highly durable structural solution that utilizes triangulated steel members for optimized strength-to-weight performance. This configuration is ideal for products requiring long spans and architectural flexibility.
⚪ Engineered for heavy-duty operable wall loads
⚪ Enhanced safety and structural integrity
⚪ Custom-designed to suit product requirements
⚪ Compatible with various ceiling and roof structures
⚪ Suitable for commercial, hospitality, educational, and corporate applications
These advanced track and support systems ensure reliable operation, long-term durability, and exceptional performance for modern space management solutions.

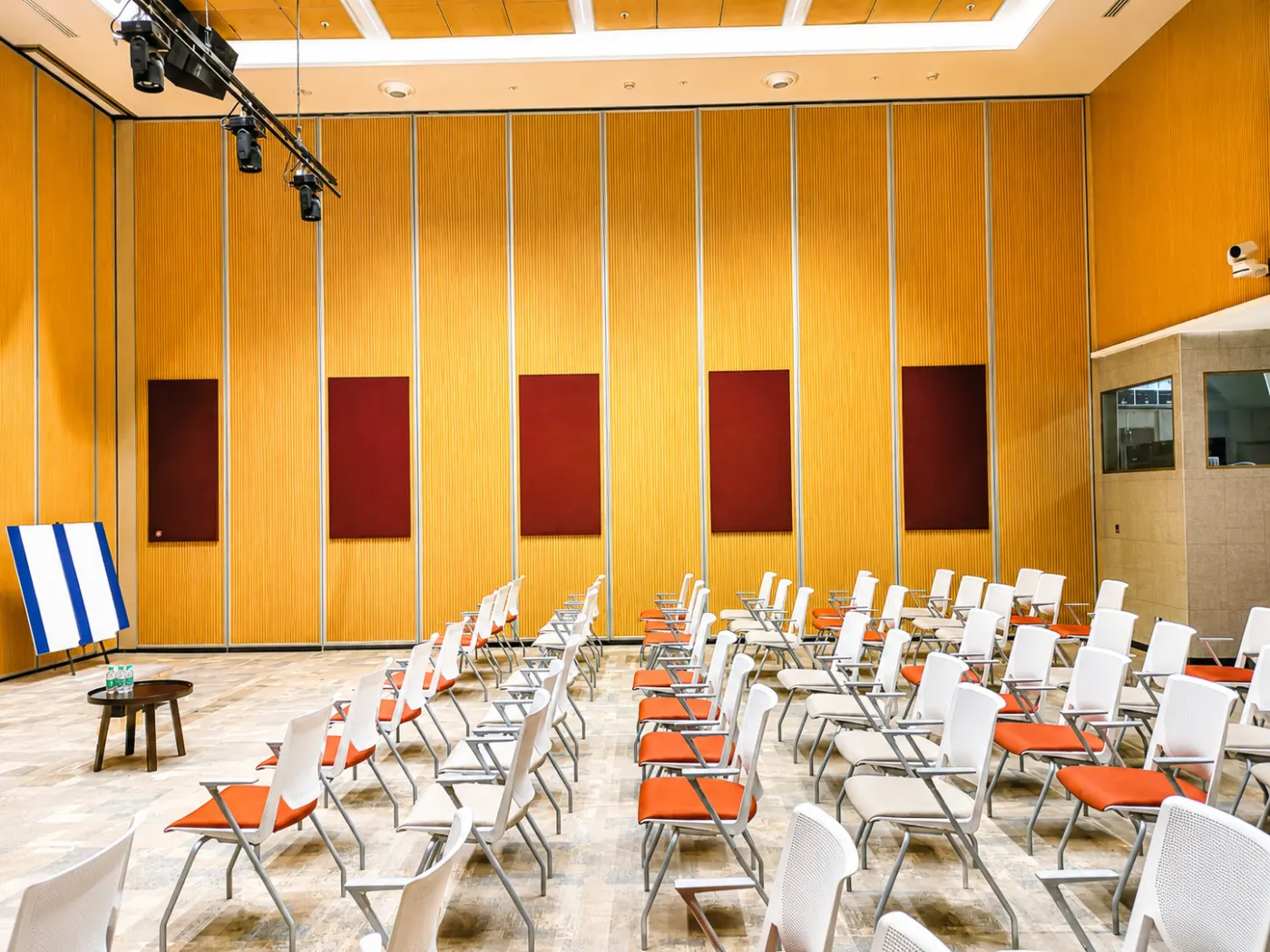

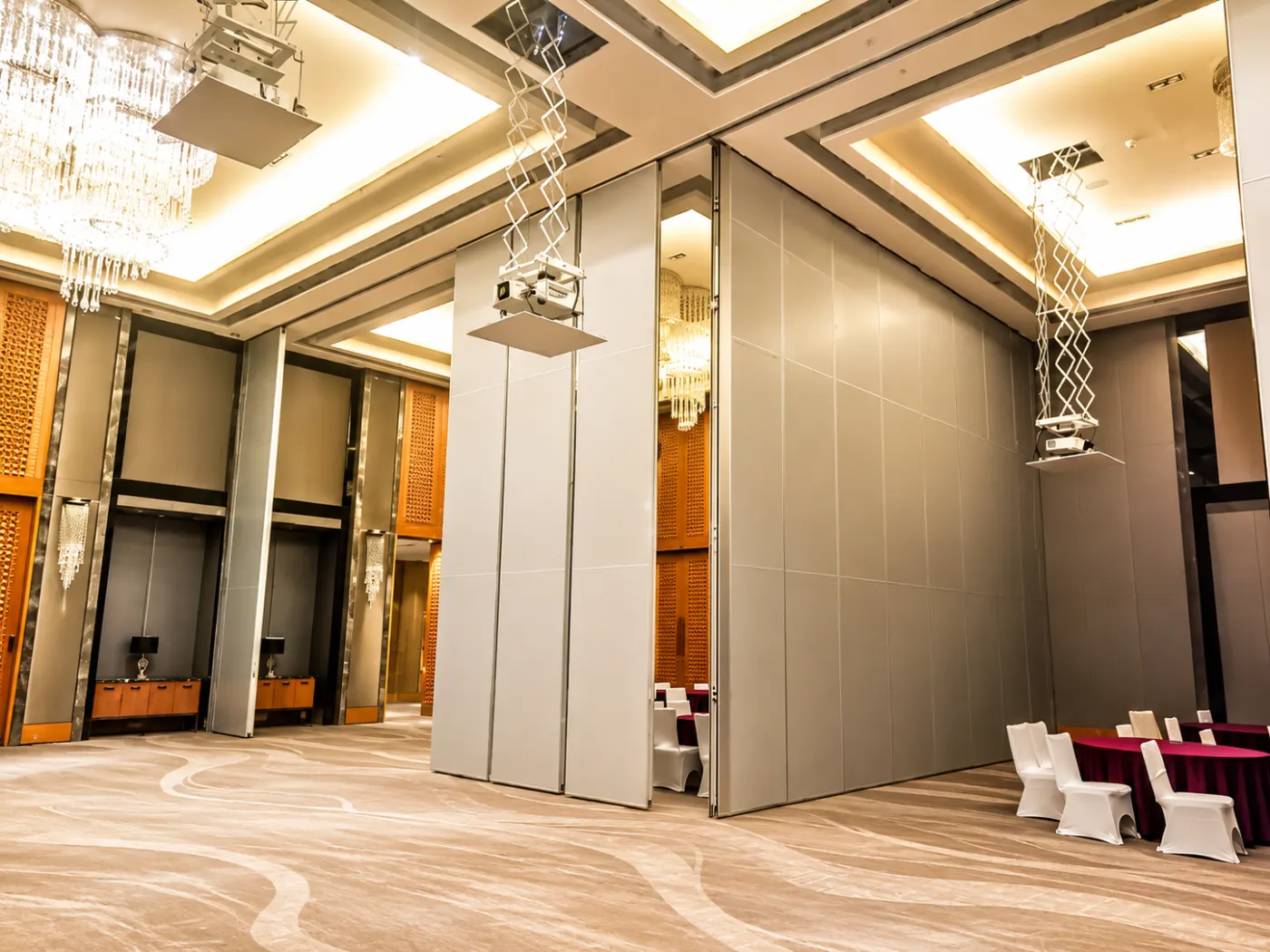

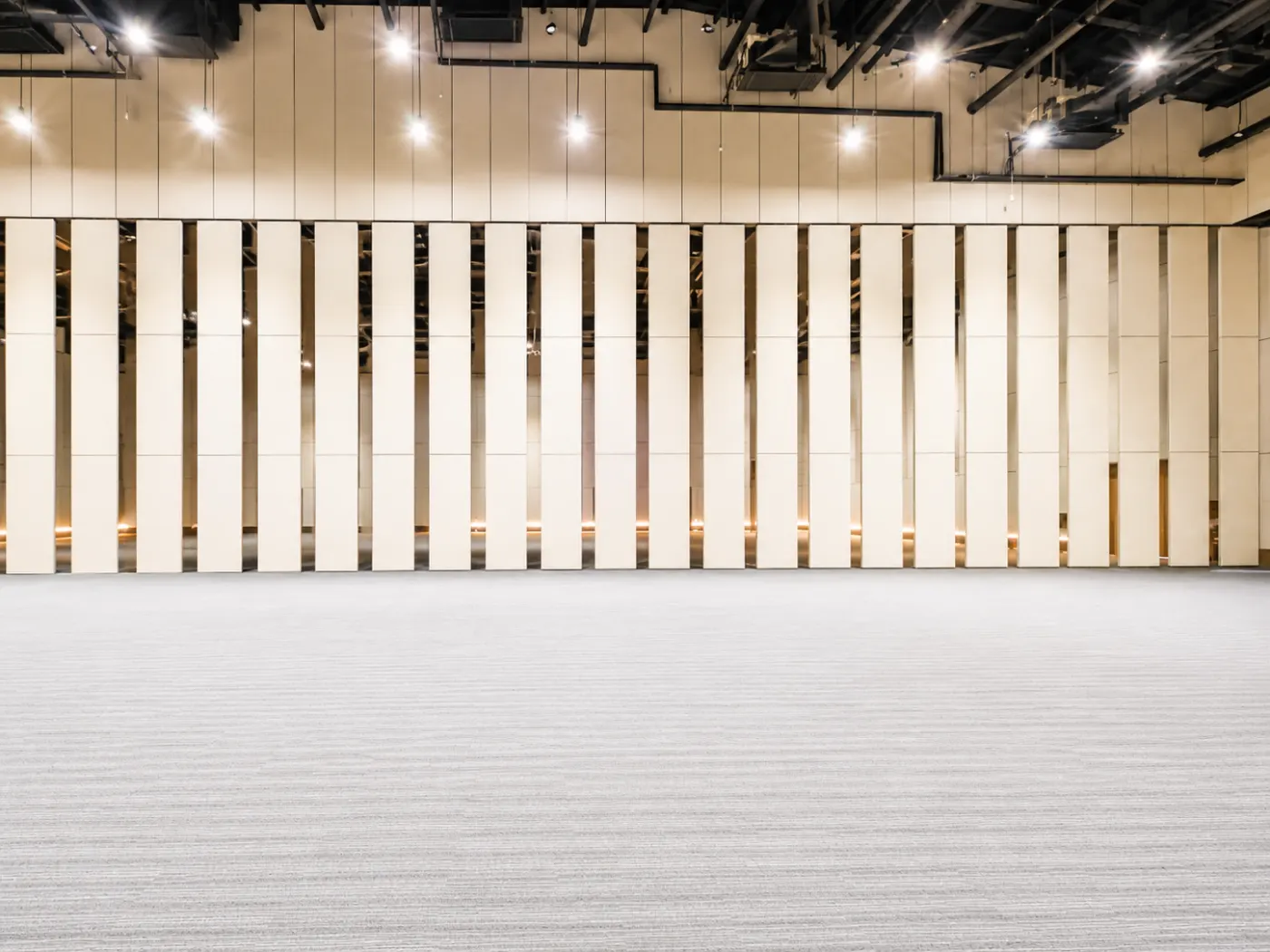

Type 110 movable wall partition is made of high quality anodized aluminum frame with environmentallycomposite materials.the panels move on a ceiling track with no requirement of floor guides or rails.,the panel has a standard thickness of 100mm and a width up to 1219mm. Maximum height can reach 7500mm tall. The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of maximum STC-55 in laboratory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant, schools, office, religion, hospitals, shopping arcades and many other indoor applications product. There are wide of range face finishes are available :melamine faced MDF or Plywood, fabric, carpet, fabric, artificial, leather, wood veneer, high pressure laminate, Formica, acoustic panel, white boad etc.,panels may also be supplied unfinished for field decoration, Standard frame color is clear anodized aluminum, custom powder coating colors are available. We work with Architects,designer,developers,contractores and owners in design product selection,decorative finishes, product management and after-sales warranty services as her one-stop solution business service..
The EG100 operable wall series with 110mm thickness is designed for high acoustic and fire-rated performance applications. Available in EG100-43, EG100-48, and EG100-53 models, the system offers STC ratings of 43dB, 48dB, and 53dB respectively, with corresponding weights of 38kg/m², 46kg/m², and 55kg/m². All models provide a 60-minute fire rating, with panel widths ranging from 680mm to 1219mm and heights from 2000mm to 7500mm. The system includes top and bottom seal pressures of 30/40kg, an LCP stretch of 140mm, and carrier capacities of 60#, 80#, and 100# depending on the model, ensuring smooth operation, durability, and reliable sound insulation for demanding interior environments..
Our Type 100 Operable Wall Track System is a premium top-hung partition solution engineered for smooth, reliable, and flexible space division. The system features a heavy-duty aluminum overhead track, precision trolley bearings, and robust carrier mechanisms designed to support high-performance operable wall panels.
With no floor track required, it provides seamless movement, enhanced aesthetics, and maximum floor accessibility. The detailed vertical section illustrates the integration of acoustic seals, retractable mechanisms, rockwool insulation, and aluminum framing for superior sound control and operational efficiency.
⚪ Heavy-duty top-hung aluminum track system
⚪ No floor track for unobstructed floor space
⚪ Smooth and quiet panel movement
⚪ Superior acoustic insulation and sealing
⚪ Suitable for conference rooms, banquet halls, hotels, offices, and educational facilities
⚪ Available with L, T, and X track junction configurations for flexible layouts
To ensure maximum stability and load-bearing performance, our operable wall systems can be integrated with various structural support configurations based on product requirements.
Designed for installations where additional overhead support is required, the angled steel framework distributes panel loads efficiently to the building structure. This solution provides excellent strength while maintaining a compact profile.
The truss support system is ideal for large-span operable wall installations. Its reinforced framework delivers exceptional load distribution, making it suitable for convention centers, ballrooms, auditoriums, and multipurpose halls.
A lightweight yet highly durable structural solution that utilizes triangulated steel members for optimized strength-to-weight performance. This configuration is ideal for products requiring long spans and architectural flexibility.
⚪ Engineered for heavy-duty operable wall loads
⚪ Enhanced safety and structural integrity
⚪ Custom-designed to suit product requirements
⚪ Compatible with various ceiling and roof structures
⚪ Suitable for commercial, hospitality, educational, and corporate applications
These advanced track and support systems ensure reliable operation, long-term durability, and exceptional performance for modern space management solutio
